Automatic Waste Paper Cardboard Blanking Stripping Separator
Machine
This machine is used for blanking the finished cardboard, plastic,
and leathers which processed by a die-cutting machine. With compact
structure, high pressure, and precision, it is easy for operation
with reliable quality to lower the working intensity and labor
cost. This machine is suitable for printing, packaging, and the
plastic industry, high speed.
※ Compact structure, fine manufactured, high pressure and
precision, easy operation and safety.
※ High-grade material welded all in one with high strength.
※ Sealed cover to improve the safety of operation.
※ Moving platform with stable stripping head, the products are
moving along with two axes, the working area is controlled by PLC
and position limiter.
※ High power servo motor no maintains needed, the movement is run
by ball screw and straight-line guide.

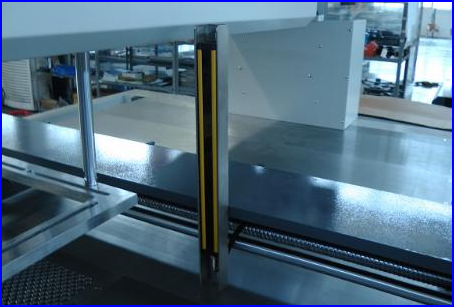

※ All direction techniques, photoelectric devices ensure the
measuring precision, sealing design to prevent dust.
※ Personnel in production operations, staffing stripping head is
not in direct contact with the worksite, No security risk.
※ Operating altitude is reasonably arranged, easy to use.
| Model | QF-1080B |
| Hydraulic pressure | Max. Pressure 4000KG |
| Speed | Blanking Speed 500-1500 times/hour |
| Precision | Positioning: 0.05 mm |
| Repeating: 0.02 mm |
| Max. Blanking Size | 520×380mm |
| Min.Stripping Size | 30×30mm |
| Max. Blanking Thickness | Paper 120g-1800g |
| Thickness 60mm-95mm (50-200 sheets) |
| Operation System | PLC controlled |
| Max. Paper Size | 1080×780mm |
| Machine power | 3kw |
| Machine size | 3200×1900×2100mm(L×W×H) |
