New Technology High Speed Flexo Printer Slotter Die Cutter Glue
Corrugated Carton Box Machine for Inline
1. Machine Groups
Auto feeder : lead edge feeder * 1 group
5 color * 5 groups
Die cutter * 1 group
Slotter * 1 group
2. Machine Details for Printer Slotter Die Cutter Part
Lead feeder
The paper feed section, the printing section, and the slotted part
are automatically reset to zero.
General carton use automatic zero device, try to print two can be
adjusted to the correct position to reduce cardboard waste.
Printer
Cylinder brake mechanism.
When the machine to separate or adjust the phase, the brake
mechanism to limit the machine rotation, to maintain the original
gear position fixed point.
Slotter
Slot knives 7mm use ally steel material after heat treatment
,grinding , teeth model knives ,
It can make the holes attachment ( optional )
Die cutter
Diameter of ¢ 388.9mm, aniv cover 405mm
Quick change type pad, wear resistance, long life.
Cast iron surface grinding, hard chrome plated.
Balance correction, increase operational stability.
Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm
swimming device. (Adjustable swimming speed)
3. Machine Details for Fold Glue and Bunding
(1) Precision-oriented row-row system /rear absorption belt
Transmission.High-strength bridge arm, precision traverse guide
system
(2)Performance: with a dedicated assembly line, the object
delivered to the cross steering device, the top of the rotation 90
degrees, the final decline, continue to transport

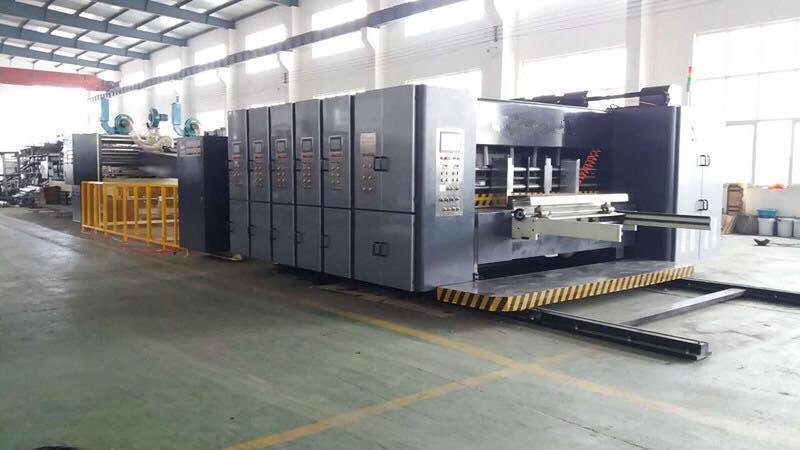

4. Machine Photos
