Automatic Die Cutting And Creasing Machine Stripping Front Lead Feeding

Ask Lasest Price
Model Number :	XLMYQ-1300B / 1500B
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	7-25 days

Add to Cart

Product Details
Company Profile

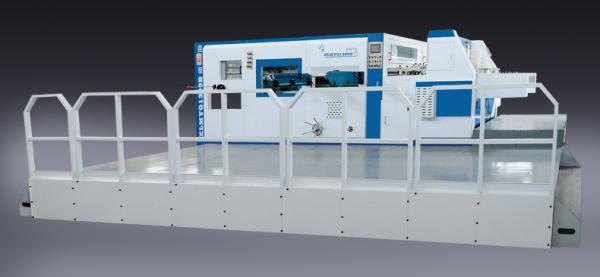

Automatic Die Cutting And Creasing Machine Stripping Front Lead Feeding

Automatic Die Cutting Creasing Machine With Stripping Front Lead Feeding

Main Features
1.The machine adopt the most advanced front-lead feeding structure, which can prevent and reduce damages to the surface of printed sheets effectively.
2.The machine realize the non-stop paper feeding and delivery, improve the working efficiency greatly.(Choosable function)
3.The paper feeding structure adopt the servo motor and motion control system, which ensure the machine working more stable and reliable.

XLMYQ-1300B Main Specification

Model	XLMYQ-1300B
Max.Paper Size	1300×980mm
Min.Paper Size	550×500mm
Max.Diecutting Size	1290×970mm
Sheet thickness	1-7mm
Max.Working Speed	4600sheets/h
Max.Working Pressure	300T
Diecutting Precision	±0.5mm
Gripper Adjustable Range	7-14mm
Max.Delivery Pile Height	1450mm
Total Power	30KW
Overall Dimensions	7620×4250×2295mm
Total Weight	19T

XLMYQ-1500B Main Specification

Model	XLMYQ-1500B
Max.Paper Size	1500×1100mm
Min.Paper Size	550×500mm
Max.Diecutting Size	1490×1090mm
Sheet thickness	1-7mm
Max.Working Speed	4200sheets/h
Max.Working Pressure	300T
Diecutting Precision	±0.5mm
Gripper Adjustable Range	7-14mm
Max.Delivery Pile Height	1420mm(
Total Power	30KW
Overall Dimensions	8320×4400×2280mm
Total Weight	20T
